Main Configuration

●　Mitsubishi M80 Control System 10.4 "Mitsubishi Motor and Drive

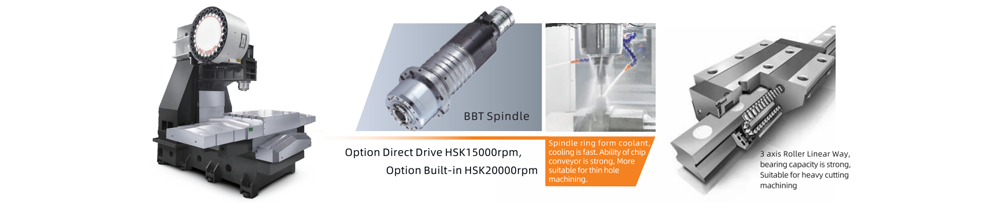

● Standard BBT40 ∅150 straight knot type 12000 RPM spindle, GMN ceramic ball bearing
● Taiwan Texs BT40 24-bit disc knife library
● Taiwan Shangyin/Yintai three-axis roller rail, precision P level
● Taiwan Shangyin/Yintai three-axis ball screw

Unique Structure Design，Performance ls More Reliable

●　All castings adopt Meehanite casting iron, deformation is small,the ability to resist vibration is better.
●　Integrated casting structure base, super big "人"type column, structure is more stable.
●　3 axis adopt precision roller linear way, rapid move speed is fast, precision is high.
●　3 axis adopt full travel design, ensure machine's dynamic precision, increase the life.
●　Spindle adopt high speed ceramic balls bearing, precision is good, the life is long.

Technical Parameters

Item	Unit	HV18
X/Y/Z axis Travel	mm	1800/900/800
Spindle Nose to Work Table	mm	150-950
Spindle Center to Column Distance	mm	950
3 Axis Guideway	/	Roller Linear Way
Work Table Size	mm	2000*900
Max Loading	kg	1800
T-slot(number-size*distance)	mm	5-22*160
3 axis Rapid Move Speed	mm	20/20/20
Cutting Feed Speed	mm/min	1-12000
Spindle Rotation Speed	rpm	8,000
Spindle Spec	/	BT50
Spindle Motor	kw	18.5
3 axis Motor	kw	4.5/4.5/4.5
Position Precision(VDI3441)	mm	0.010
Repeat Position Precision(VDI3441)	mm	0.008
Machine Weight	kg	145000
Machine Size	mm	430035003300

Dongguan Sunshine Precision Machinery Co., Ltd is The Mainland Factory of Taiwan JoinF Seiki Stock Co., Ltd. That Located In Chinese Mould Famous Town--Chang'an Town Dongguan City.
