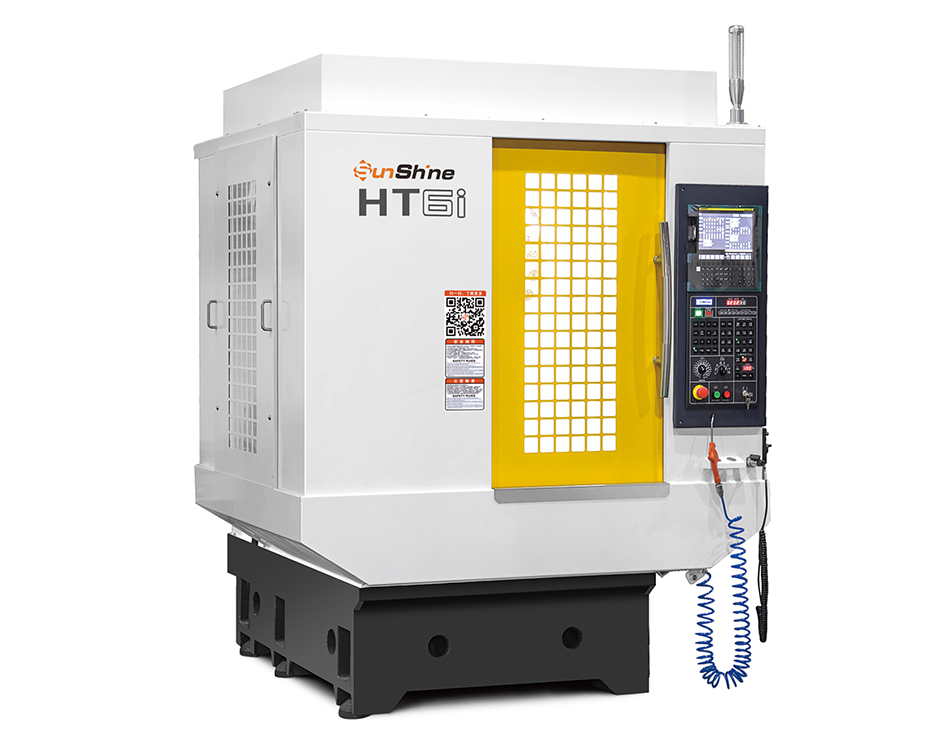

Perfect Combination Of Efficiency And Precision

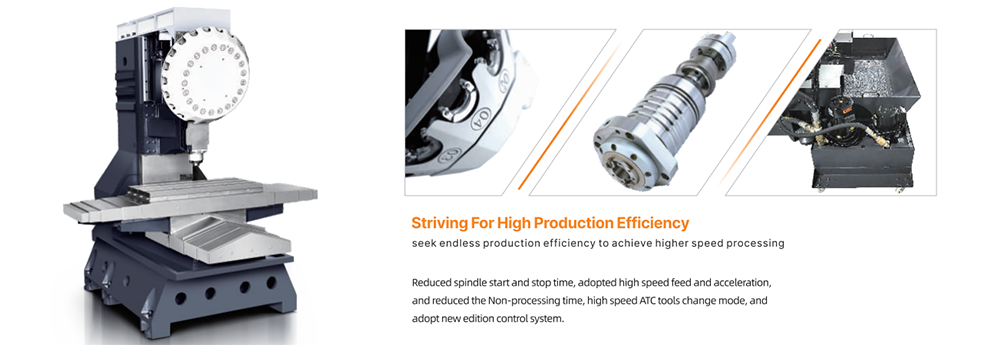

● Adopt heavy duty body design, boxing column, rigidity is good, stabilty is high.
● 3 axis adopt ball linear way, speed is fast, precision is high.
● Z axis with brake, Non balance design, high speed move up and down, haven't vibration, precision is high.
● Cooperate head umbrella tool magazine, tools change is fast, high efficiency.
● Back chip conveyor stucture design, clean the chips easily.
| Item | Unit | HT6i |
| X/Y/Z axis Travel | mm | 600/450/300 |
| Spindle Nose to Work Table | mm | 150-450 |
| Spindle Center to Column Distance | mm | 464 |
| 3 Axis Guideway | / |
Roller Linear Way |
| Work Table Size | mm | 700*420 |
| Max Loading | kg | 400 |
| T-slot(number-size*distance) | mm | 3-14*125 |
| 3 axis Rapid Move Speed | m/min | 48/48/48 |
| Cutting Feed Speed | mm/min | 1-20000 |
| Spindle Rotation Speed | rpm | 12000/15000 |
| Spindle Spec | / | BBT30 Φ120 |
| Spindle Motor | kw | 5.5/7.5 |
| 3 axis Motor | kw | 1.5/1.5/3 |
| Position Precision(VDI 3441) | mm | 0.008 |
| Repeat Position Precision(VDI3441) | mm |
0.006 |
| TooL Magazine Type | pcs |
20T ServoType |
| Machine Weight | kg |
3800 |
| Machine Size | mm |
2000*2100*2400 |
Dongguan Sunshine Precision Machinery Co., Ltd is The Mainland Factory of Taiwan JoinF Seiki Stock Co., Ltd. That Located In Chinese Mould Famous Town--Chang'an Town Dongguan City.
