Perfect Combination of Rigidity and Precision
● X/Y axis adopt heavy duty oller inear way, precision is high.
● Z axis adopt super wide type square guideway, capacity of resist vibration is strong.
● Z axis adopt nitrogen balance,ensure the stability of moving up and down.
● With double screw type chip conveyors and chain type chip conveyor, clear the chips automatically.
● Various door width choice, can satisfy various machining requirement.

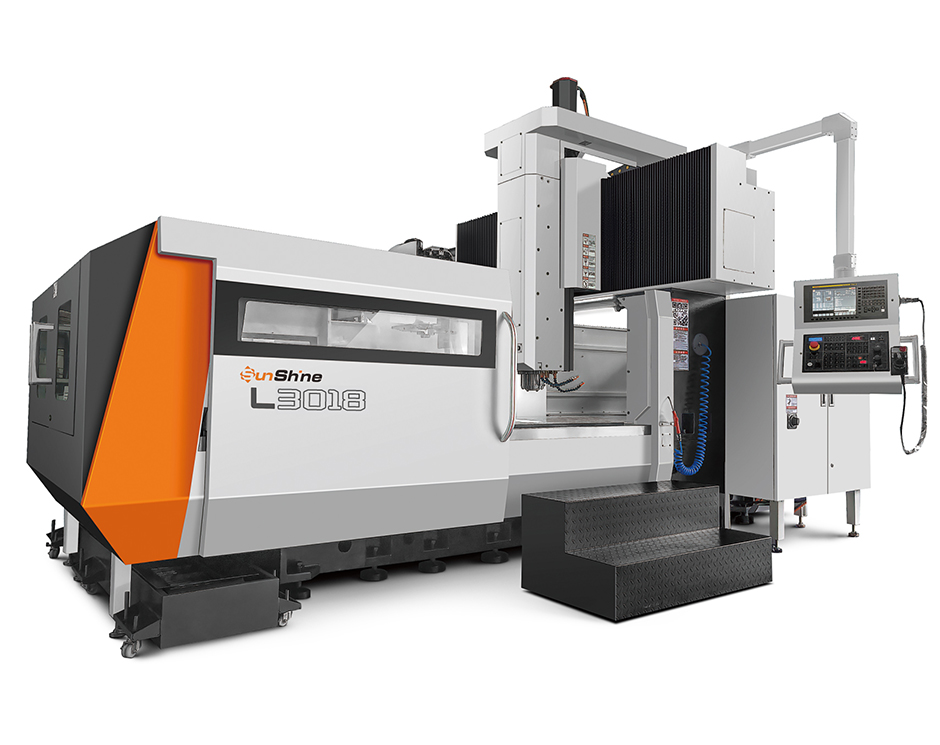

| Item | Unit | L3018 |
| X/Y/Z axis Travel | mm | 3200/1800/800 |
| Door Width | mm | 1850 |
| Spindle Nose to Work Table Size | mm | 150-950 |
| 3 Axis Guideway | / |
X/Y axis Roller Linear Way, |
| Work Table Size | mm | 3000*1600 |
| Max Loading | kg | 6500 |
| T-slot(number-size*distance) | mm | 11-22*150 |
| Spindle Spec | / | BT50 |
| Spindle Rotation Speed | rpm | 6000 |
| Transmission Type | / | Belt Drive/Direct Drive/Gear Drive |
| Spindle Motor | kw | 22 |
| 3 axis Motor | kw | 7/4.5/4.5 |
| Cuting Feed Speed | mm/min | 1-10000 |
| 3 axis Rapid Move Speed | M/min |
10/10/10 |
| Position Precision | mm |
±0.005/300 |
| Repeat Position Precision | mm |
±0.003/300 |
| Machine Weight | kg |
27500 |
| Machine Size | mm |
9500*4300*4200 |
Dongguan Sunshine Precision Machinery Co., Ltd is The Mainland Factory of Taiwan JoinF Seiki Stock Co., Ltd. That Located In Chinese Mould Famous Town--Chang'an Town Dongguan City.
