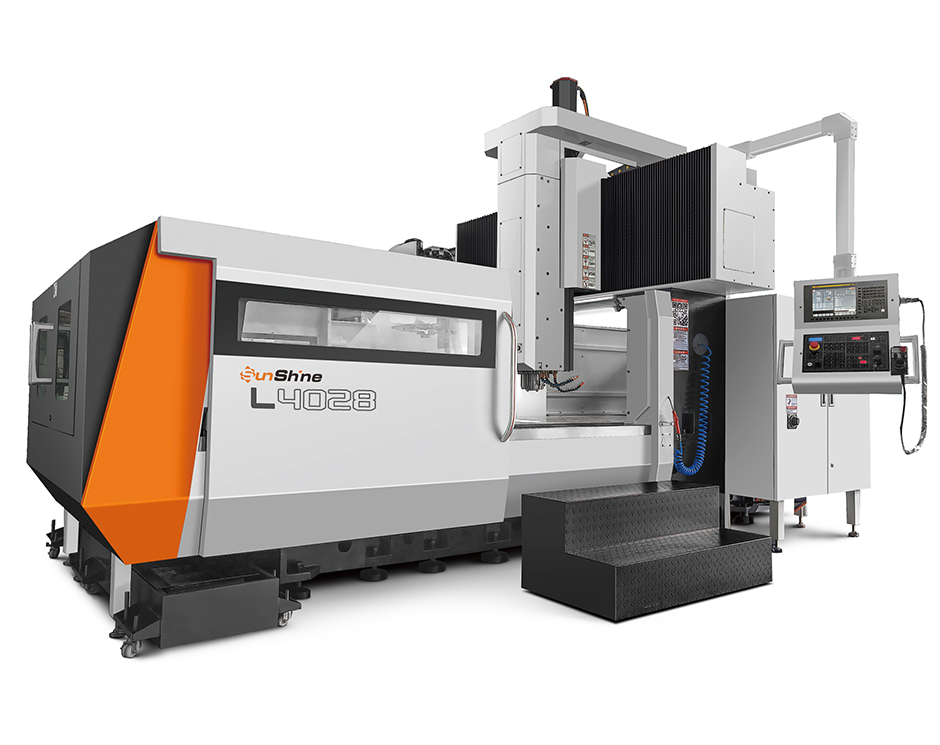

Perfect Combination of Rigidity and Precision
● X/Y axis adopt heavy duty oller inear way, precision is high.
● Z axis adopt super wide type square guideway, capacity of resist vibration is strong.
● Z axis adopt nitrogen balance,ensure the stability of moving up and down.
● With double screw type chip conveyors and chain type chip conveyor, clear the chips automatically.
● Various door width choice, can satisfy various machining requirement.
| Item | Unit | L4028 |
| X/Y/Z axis Travel | mm | 4000/3200/1000 |
| Door Width | mm | 2870 |
| Spindle Nose to Work Table Size | mm | 200-1200 |
| 3 Axis Guideway | / |
X/Y axis Roller Linear Way, |
| Work Table Size | mm | 4200*2400 |
| Max Loading | kg | 13000 |
| T-slot(number-size*distance) | mm | 16-28*250 |
| Spindle Spec | / | BT50 |
| Spindle Rotation Speed | rpm | 6000 |
| Transmission Type | / | Belt Drive/Direct Drive/Gear Drive |
| Spindle Motor | kw | 22/26 |
| 3 axis Motor | kw | 9/7/7 |
| Cuting Feed Speed | mm/min | 1-10000 |
| 3 axis Rapid Move Speed | M/min |
8/8/8 |
| Position Precision | mm |
±0.01/300 |
| Repeat Position Precision | mm |
±0.01 |
| Machine Weight | kg |
42000 |
| Machine Size | mm |
11500*6000*5000 |
