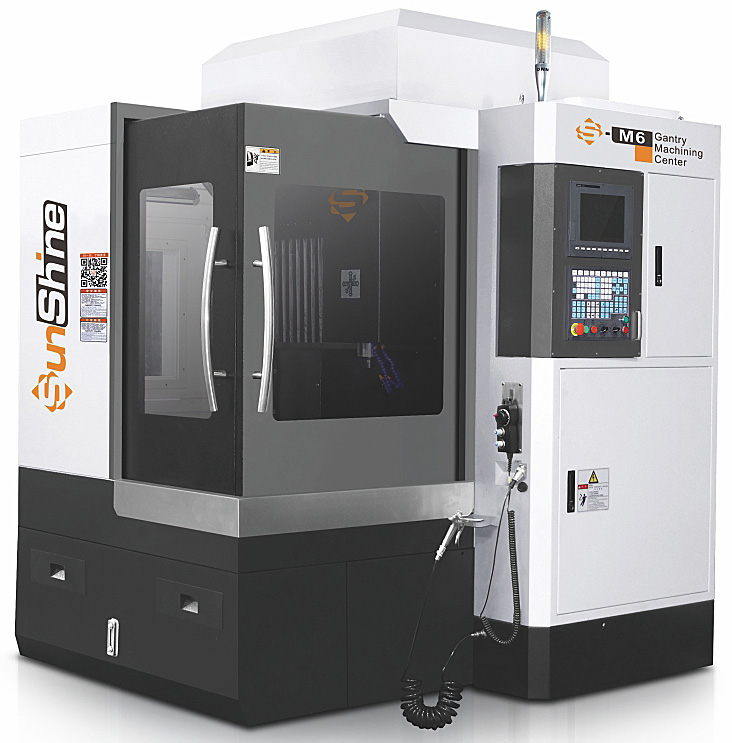

High speed, high precision
● Overweight body design, machine stability.
● The three-axis adopts precision linear guide rails with high displacement speed and high precision.
● With high-speed precision spindle, the machining precision is high and the finish is good.
● Equipped with a high-power oil cooler to reduce the heat generated by the spindle and high machining accuracy.
● Fully enclosed enclosure with exhaust system to reduce contamination during high speed machining.
.png)
.jpg)
.jpg)
| Item | .png) -M6 |
| X/Y/Z axis Travel | 600/500/250mm |
| Spindle Nose to Work Table | 80-330mm |
| Door Width | 760mm |
| 3 Axis Guideway |
Ball Linear Way |
| Work Table Size | 600×500mm |
| Max Loading | 300kg |
| T-slot(number-size*distance) | 5-18×100mm |
| 3 axis Rapid Move Speed | 15/15/15mm/min |
| Cutting Feed Speed | 0-10000mm/min |
| Spindle Rotation Speed | 24000/30000rpm |
| Spindle Spec | ER25/ER32/BT30 |
| Spindle Motor | 7.5kw |
| 3 axis Motor | 1.3/1.3/1.3kw |
| Position Precision | ±0.005/300mm |
| Repeat Position Precision | ±0.003mm |
| Machine Weight |
3500kg |
| Machine Size |
1900×2100×2200mm |
Dongguan Sunshine Precision Machinery Co., Ltd is The Mainland Factory of Taiwan JoinF Seiki Stock Co., Ltd. That Located In Chinese Mould Famous Town--Chang'an Town Dongguan City.
