Unique Structure Design，Performance ls More Reliable
● All castings adopt Meehanite casting iron, deformation is small,the ability to resist vibration is better.
● Integrated casting structure base, super big "人"type column, structure is more stable.
● 3 axis adopt precision roller linear way, rapid move speed is fast, precision is high.
● 3 axis adopt full travel design, ensure machine's dynamic precision, increase the life.
● Spindle adopt high speed ceramic balls bearing, precision is good, the life is long.

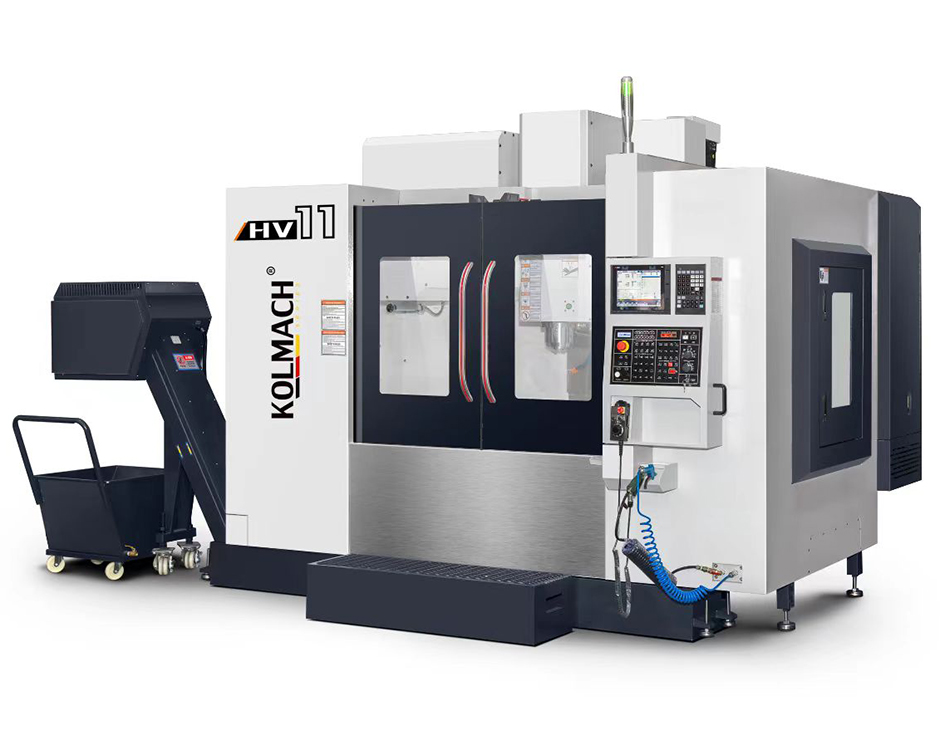

| Item | Unit | HV11 |
| X/Y/Z axis Travel | mm | 1100/600/600 |
| Spindle Nose to Work Table | mm | 130-730 |
| Spindle Center to Column Distance | mm | 710 |
| 3 Axis Guideway | / |
Roller Linear Way |
| Work Table Size | mm | 1200*600 |
| Max Loading | kg | 1000 |
| T-slot(number-size*distance) | mm | 5-18*100 |
| 3 axis Rapid Move Speed | mm | 36/36/36 |
| Cutting Feed Speed | mm/min | 1-20000 |
| Spindle Rotation Speed | rpm | 12,000 |
| Spindle Spec | / | BBT40 |
| Spindle Motor | kw | 11/15 |
| 3 axis Motor | kw | 3/3/4.5 |
| Position Precision(VDI3441) | mm | 0.008 |
| Repeat Position Precision(VDI3441) | mm |
0.006 |
| Machine Weight | kg |
7800 |
| Machine Size | mm |
3100*3000*2900 |
Dongguan Sunshine Precision Machinery Co., Ltd is The Mainland Factory of Taiwan JoinF Seiki Stock Co., Ltd. That Located In Chinese Mould Famous Town--Chang'an Town Dongguan City.
