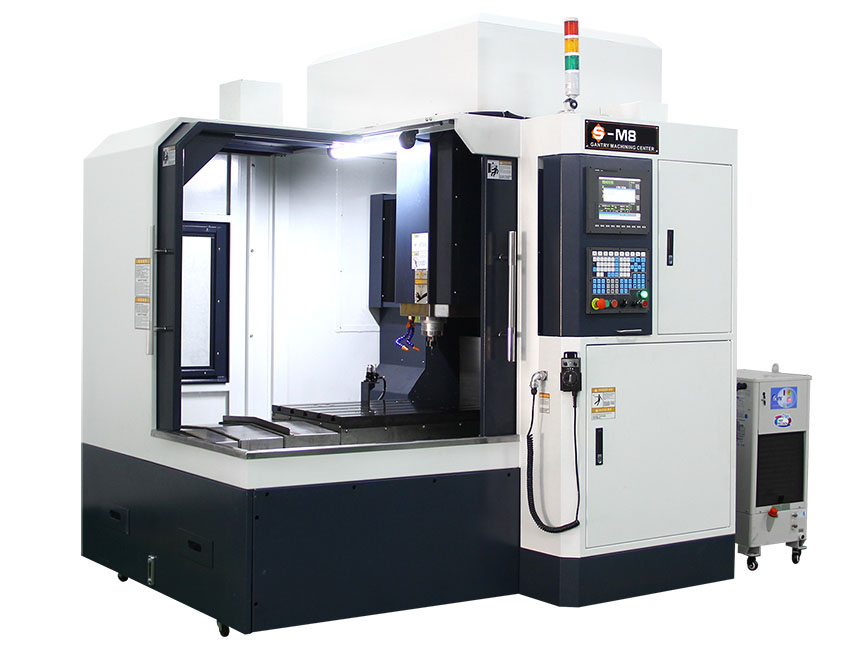

-M8

SUNSHINE CNC Main configuration

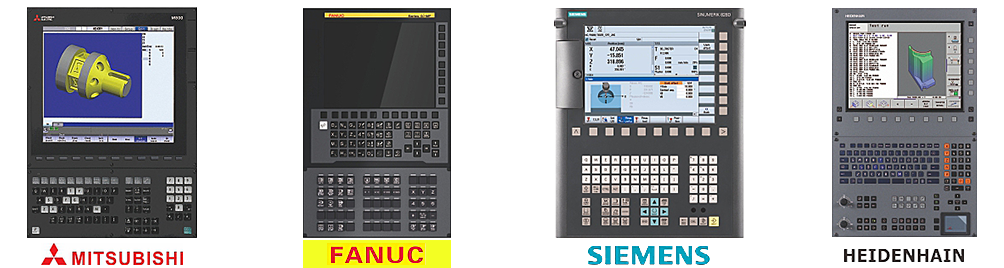

●　Adopt Japan Mitsubishi, FANUC or Germany Siemens, HEIDENHAIN control system.
●　Japan's Mitsubishi, Fanuc or Germany's Siemens, HEIDENHAIN spindle motors, three-axis motors and drives.
●　Taiwan's well-known brand spindle.
●　Taiwan's Shangyin, Yintai or Japan THK or German Rexroth rails and ball screws.

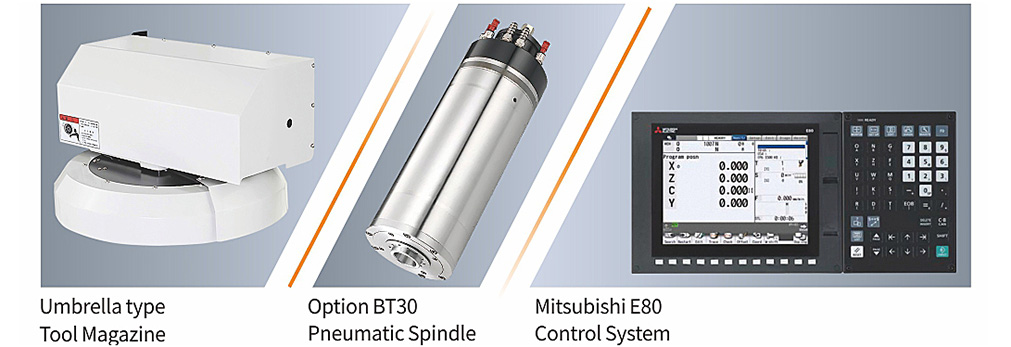

●　Standard Taiwan famous brand 24T disc type tool magazine.
●　Japan NSK bearing.

High speed, high precision

●　Overweight body design, machine stability.
●　The three-axis adopts precision linear guide rails with high displacement speed and high precision.
●　With high-speed precision spindle, the machining precision is high and the finish is good.
●　Equipped with a high-power oil cooler to reduce the heat generated by the spindle and high machining accuracy.
●　Fully enclosed enclosure with exhaust system to reduce contamination during high speed machining.

Technical Parameters

Item	-M8
X/Y/Z axis Travel	700/800/330mm
Spindle Nose to Work Table	110-440mm
Door Width	760mm
3 Axis Guideway	Ball Linear Way
Work Table Size	800×600mm
Max Loading	400kg
T-slot(number-size*distance)	5-18×115mm
3 axis Rapid Move Speed	15/15/15mm/min
Cutting Feed Speed	0-10000mm/min
Spindle Rotation Speed	24000/30000rpm
Spindle Spec	ER25/ER32/BT30
Spindle Motor	7.5kw
3 axis Motor	1.3/1.3/1.3kw
Position Precision	±0.005/300mm
Repeat Position Precision	±0.003mm
Machine Weight	4300kg
Machine Size	2000×2500×2400mm

Dongguan Sunshine Precision Machinery Co., Ltd is The Mainland Factory of Taiwan JoinF Seiki Stock Co., Ltd. That Located In Chinese Mould Famous Town--Chang'an Town Dongguan City.
