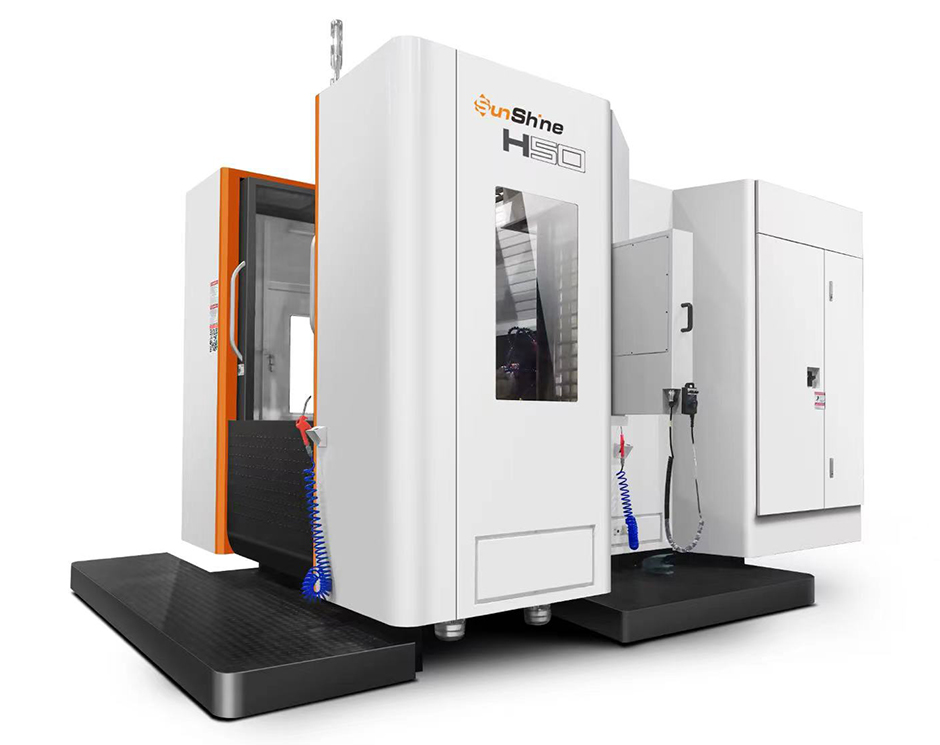

Multisurface Machining，High Efficiency And High Precision
● Multiple base structure, suitable for different products'machining requirement.
● Clamping one time, can realize multisurface machining.
● With big power motors, can realize big torque output.
● 3 axis adopt roller linear way, speed is fast, precision is high, rigidity is good.
| Item | Unit | H50 |
| Work Table Size | mm | 500*500 |
| Work Table Number | pcs | 1pc (Option Double Exchange Rotary Table) |
| Work Table Division | ° | 1/360 or 1/1000 |
| Max Loading | kgs | 600 |
| X/Y/Z axis Travel | mm | 800/800/800 |
| Spindle Center to Work Table Size | mm | 50-850 |
| Spindle Nose to Work Table Center Size | mm | 125-925 |
| T-slot(number-size*distance) | mm | 5-18*100 |
| Spindle Spec | / | BT50 |
| Spindle Rotation Speed | rpm | 6000 |
| Cutting Feed Speed | mm/min | 1-12000 |
| 3 axis Rapid Move Speed | M/min | 24/24/24 |
| Spindle Motor | kw | 15/18.5 |
| 3 axis Motor | kw | 4.5/4.5/4.5 |
| Position Precision(VDI3441) | mm | 0.010 |
| Repeat Position Precision(VDI 3441) | mm | 0.008 |
| Machine Weight | kg |
9500 |
| Machine Size | mm |
3000*3200*2800 |
Dongguan Sunshine Precision Machinery Co., Ltd is The Mainland Factory of Taiwan JoinF Seiki Stock Co., Ltd. That Located In Chinese Mould Famous Town--Chang'an Town Dongguan City.
